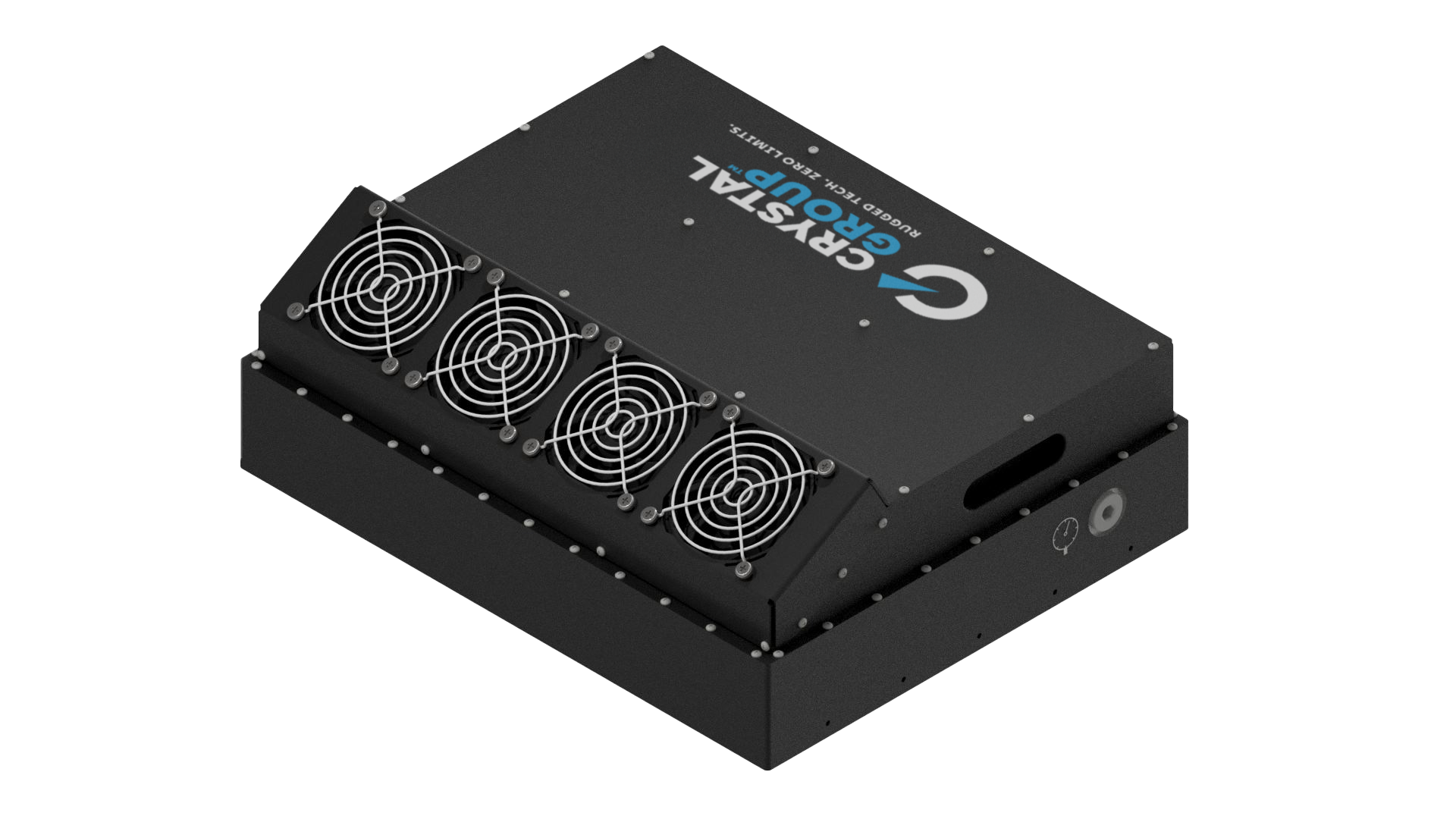

RE3423M Sealed Server

High-performance compute in a completely sealed chassis

The RE3423M is third party certified to IP68 water and dust ingress protection levels with up to 220 watts of combined CPU and GPU power without sacrificing performance at 65°C. This purpose designed chassis enables demanding applications to be deployed into harsh elements and extreme environments. The custom internal heatsinks developed for the RE3423M allow industry leading operation for mission equipment in high temperature environments.

The RE3423M is currently configured with Intel® Xeon® Scalable processor and NVIDIA professional graphics card for high reliability in the field. Crystal Group’s embedded computer systems align with industry processor roadmaps to ensure access to the latest in long life, powerful processors.

Get a Quote Request More Info Download Spec Sheet
RE3423M Sealed Server
  • IP68 dust and water-tight (tested for 24 hours continuous immersion at >1 meter depth)
  • -40°C to +65°C operational temperature
  • Intel Xeon CPU; up to 20 cores and 150W
  • Low-profile GPU up to 70W
  • Designed to MIL-STD-1275E
  • Up to three 2.5” SATA or two U.2 NVMe drives
Mechanical
Height 5.80” (14.7 cm)
Width 15.75” (40.0 cm) max
Depth 12.60” (32.0 cm) over body, 13.35” (33.9cm) max including MIL-CIRC connectors
Weight 33 lbs. (15.0 kg) max with all drives populated and one card installed
Mounting
Mounted from base flanges
Power Supply
18-36VDC MIL-STD-1275, MIL-STD-461 1
CPU
Up to 20 cores, 150W TDP
Memory
Up to 512GB DDR4 ECC RDIMM
Internal Expansion Slots
One PCIeX16 low profile, single slot, full length card, up to 70W TDP
Removable Drives and I/O
Option 1 Two non-removable NVME SSDs
Option 2 Three non-removable SATA SSDs
Option 3 Inquire about sealed removable drive options
System Board
X12SPM-TF
Cooling
External heat sink cooled by four external IP68 rated fans
Software Compatibility
Supports Windows® 11, Windows® Server, Linux®, or VMware®
Environmental Standards
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
MIL-STD-810, Storage, Method 501, Procedure I/I -55°C to +80°C
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II -40°C to +65°C (Horizontal Orientation), +63°C (Vertical Orientation), unthrottled full performance
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours
MIL-STD-810, Salt fog, Method 509 48 hours
MIL-STD-810, Vibration, Method 514, Procedure I 8Grms, 10-2,000Hz, 30 min/axis, 3 axis per Crystal Group Standard Ground Profile
MIL-STD-810, Shock, Method 516, Procedures I/V 11msec – functional shock; 40g, 11msec – crash hazard shock
IEC 60529 Ingress Protection IPX8 Immersion for 24 hours at 1 meter, IP6X Dust for 8 hours with vacuum
Electromagnetic Compatibility Standards
MIL-STD-461F CE102, CS101, CS114, CS115, CS116, RE102, and RS103 compliant1
